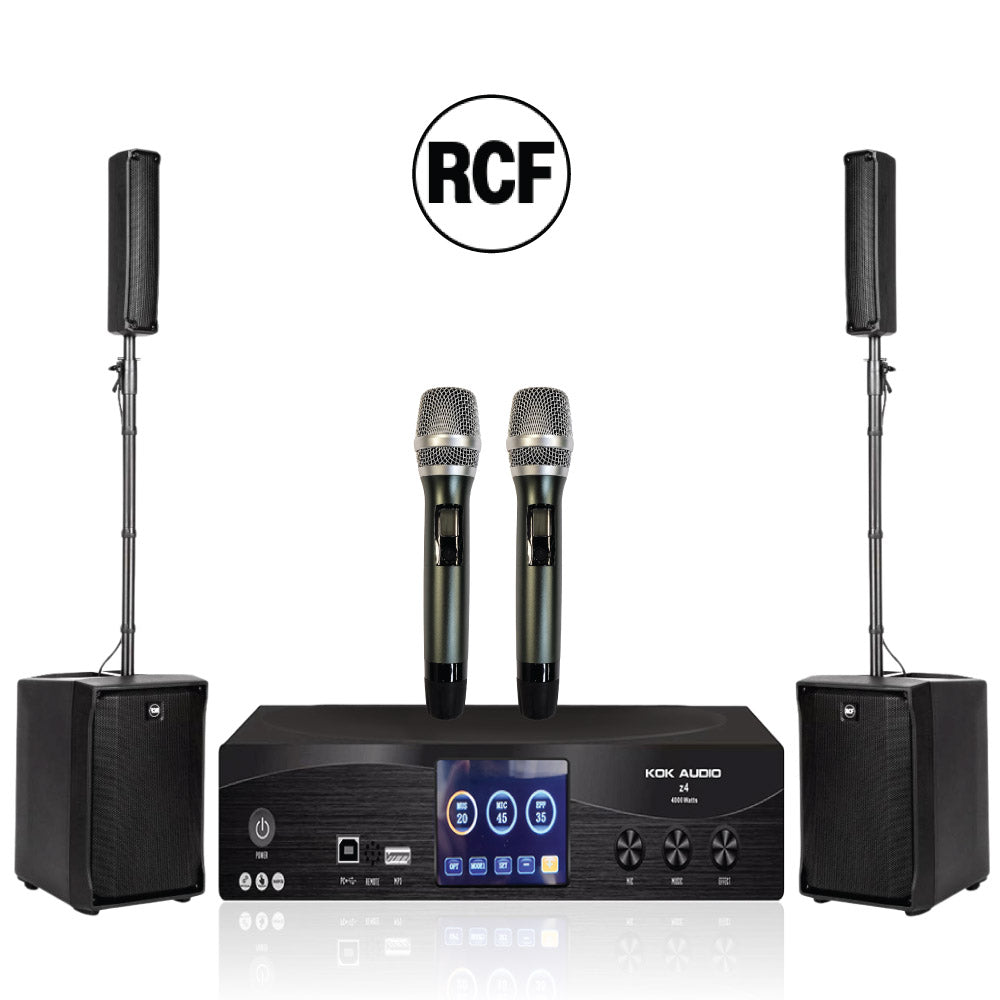

RCF EVOX J8 + Z4 Karaoke Package - Made in Italy

MADE IN ITALY

System Includes:
- KOK Audio Z4 3-in-1 Microphone Mixing Amplifier System
- RCF EVOX J8 Karaoke Speakers (x2)
- FREE Accessories

KOK Audio Z4 – DSP Karaoke Amplifier (3-in-1)

The KOK Audio Z4 is a versatile DSP-powered karaoke amplifier designed for home entertainment and professional karaoke systems. It integrates amplification, digital signal processing, and wireless microphone support into a single compact unit, making it ideal for TV setups, karaoke rooms, and small venues.

Key Features

• 3-in-1 system: Combines amplifier, DSP processor, and wireless microphone receiver in one unit
• High output power: Up to 4000W peak, delivering strong and clear sound performance
• DSP audio processing: Built-in EQ, echo, and reverb controls for customized karaoke effects
• Touchscreen interface: Easy control of music, microphone, and effects directly from the front panel
• Multiple sound modes: Preset modes and adjustable parameters for different environments and preferences
• Wireless microphone support: Stable connection with adjustable frequency and channel selection

Connectivity

• HDMI (ARC + inputs): Connect to TVs and media devices
• Bluetooth input: Wireless audio streaming
• Optical (SPDIF), DVD, VOD inputs
• USB & MP3 playback
• Microphone inputs (wired + wireless)
• Multiple audio outputs (L/R, center, sub)

Audio Performance

• Frequency response: 20 Hz – 20 kHz
• Signal-to-noise ratio: > 96 dB
• Low distortion: < 0.1% THD
• High damping factor: 400:1 for better speaker control

Microphone System

• Digital PLL frequency synthesis for stable transmission
• Wide dynamic range and low distortion
• Adjustable echo, reverb, and tone settings for vocals
• Long working distance and reliable wireless performance

Applications

• Home karaoke systems
• Living room entertainment setups
• Small KTV rooms or lounges
• Events and small-stage performances

Summary

The Z4 is a feature-rich, all-in-one karaoke amplifier that focuses on ease of use, flexible connectivity, and customizable sound effects, making it a practical choice for both casual users and semi-professional setups.

• Output power (RMS): 4000 WATTS PEAK
• Inputs: 0.775Vrms / 1.2Vms
• Frequency response: 20–20000Hz (0.3dB)
• Slew rate: 50V/s
• Damping factor: 400:1
• Crosstalk: >65dB@1KHz
• S/N: >96dB
• THD-N: <0.1%@1KHz
• IMD: <0.2% 8Ω 1KHz @1W

Kok Audio Z4 Manual

RCF J8

RCF J8 Features

• 128 dB Max SPL
• 1400 Watt 2-way power
• DSP Processing with FiRPHASE
• 12" woofer, high power 2.5" voice coil
• 8 x 2" ultra compact fullrange 1.0" voice coil
• 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
• 23,8/52.5 kg/lbs


The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

Part number:

• 13000554
  EVOX J8
  220-240V, Black, EAN 8024530015541
• 13000555
  EVOX J8
  115V, Black, EAN 8024530015558
• 13000567
  EVOX J8 W
  220-240V, White, EAN 8024530015589
• 13000568
  EVOX J8 W
  115V, White, EAN 8024530015596

BRING THE PARTY WITH YOU

Powerful Class D Amplifier

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

LOW FREQUENCIES - The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Ready to play in a few simple steps

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.

PLAY! Carrying and mounting your audio system has never been so quick.

J System configurations

From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.

SPECIFICATIONS

Acoustical specifications

• Frequency Response: 40 Hz ÷ 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 30°


Transducers

• Fullrange: 8 x 2.0'', 1.0'' v.c
• Woofer: 1 x 12'', 2.5'' v.c


Input/Output section

• Input signal: bal/unbal
• Input connectors: XLR, Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu


Processor section

• Crossover Frequencies: 220 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, Boost, Mic/Line


Power section

• Total Power: 1400 W Peak, 700 W RMS
• High frequencies: 400 W Peak, 200 W RMS
• Low frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: VDE


Standard compliance

• Safety agency: CE compliant


Physical specifications:

• Cabinet/Case Material: PP Composite
• Handles: 1 Top
• Grille: Steel
• Color: Black, White


Size / Weight

• Height: 2285 mm / 89.96 inches
• Width: 400 mm / 15.75 inches
• Depth: 460 mm / 18.11 inches
• Weight: 20.2 kg / 44.53 lbs


Shipping information

• Package Height: 676 mm / 26.61 inches
• Package Width: 451 mm / 17.76 inches
• Package Depth: 581 mm / 22.87 inches
• Package Weight: 29.9 kg / 65.92 lbs

RCF EVOX J8 User Manual
