RCF EVOX J8 PORTABLE ACTIVE TWO WAY PORTABLE ARRAY SPEAKER - Made in Italy
Features
- 128 dB Max SPL
- 1400 Watt 2-way power
- DSP Processing with FiRPHASE
- 12" woofer, high power 2.5" voice coil

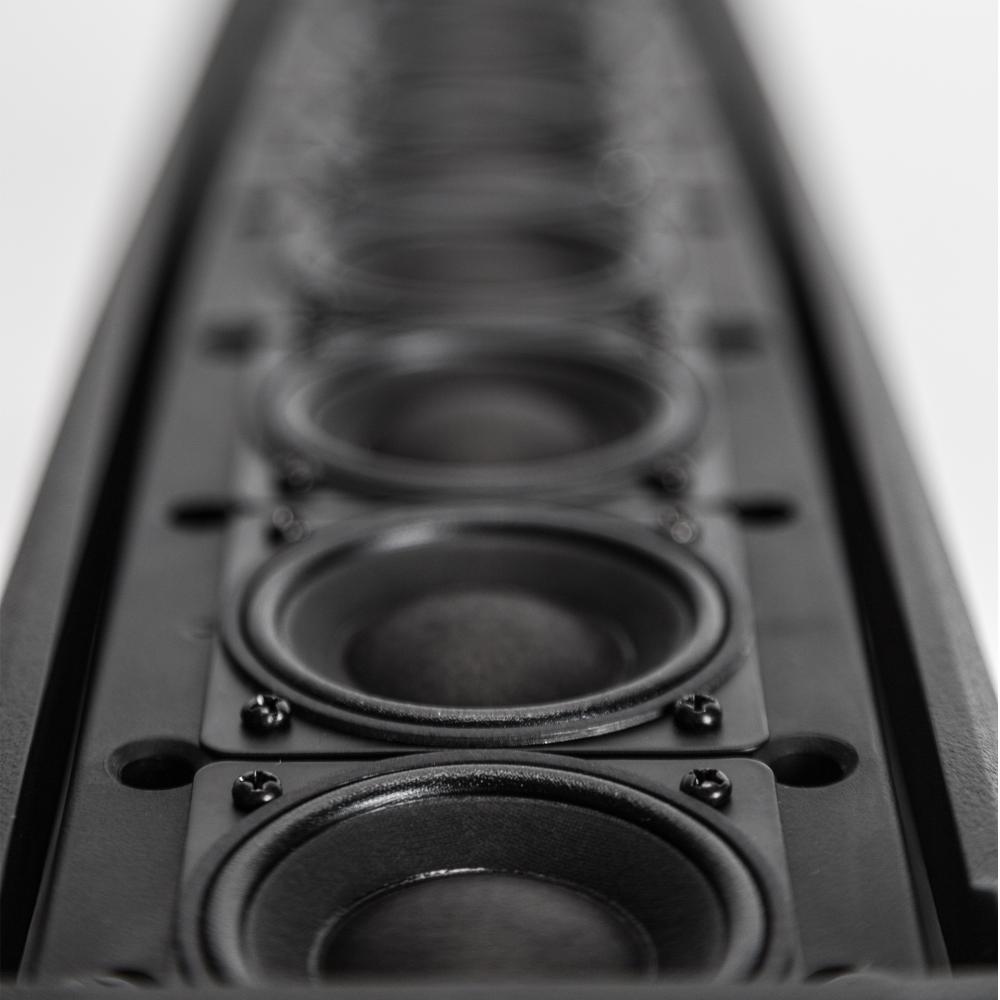

- 8 x 2" ultra compact fullrange 1.0" voice coil
- 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
- 23,8/52.5 kg/lbs

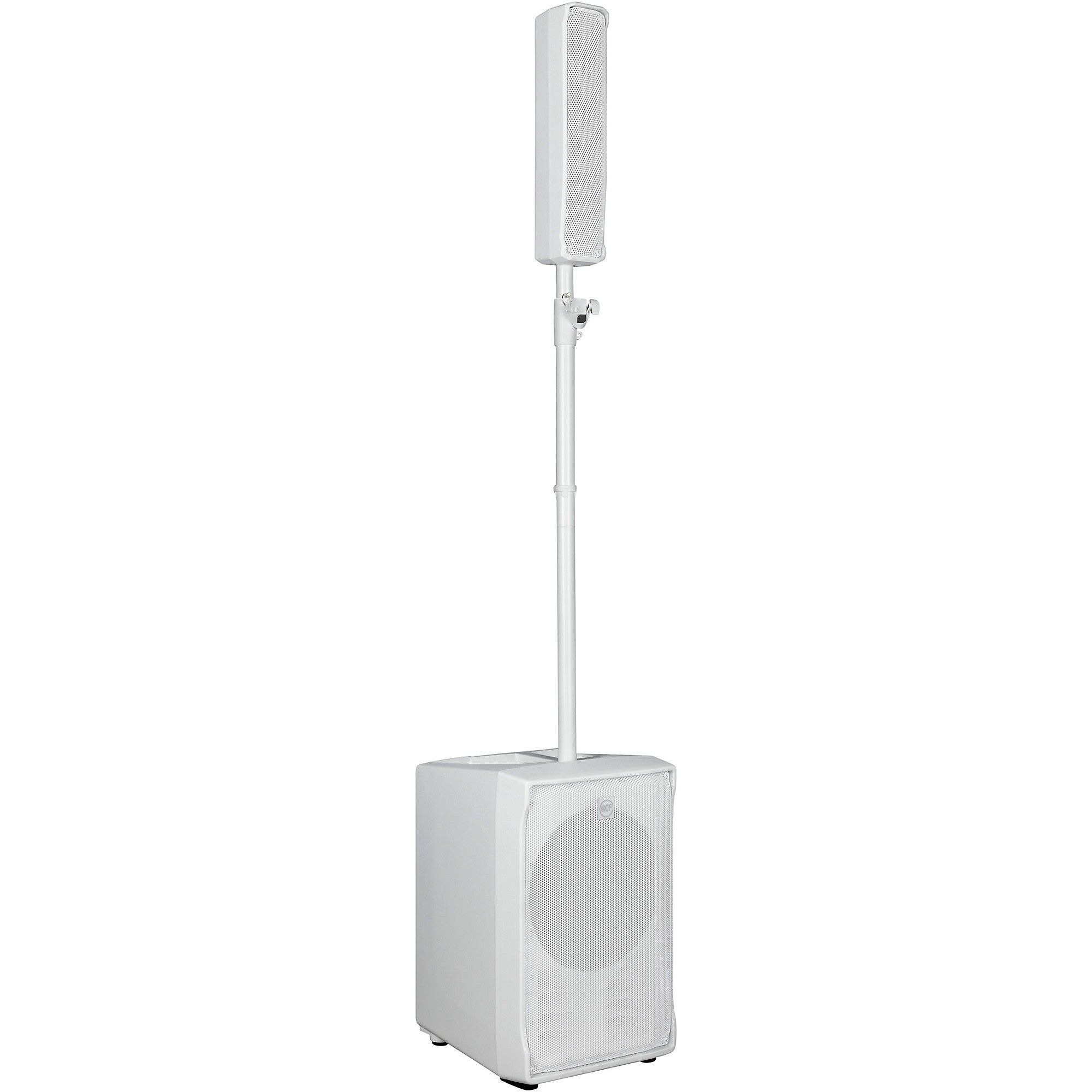

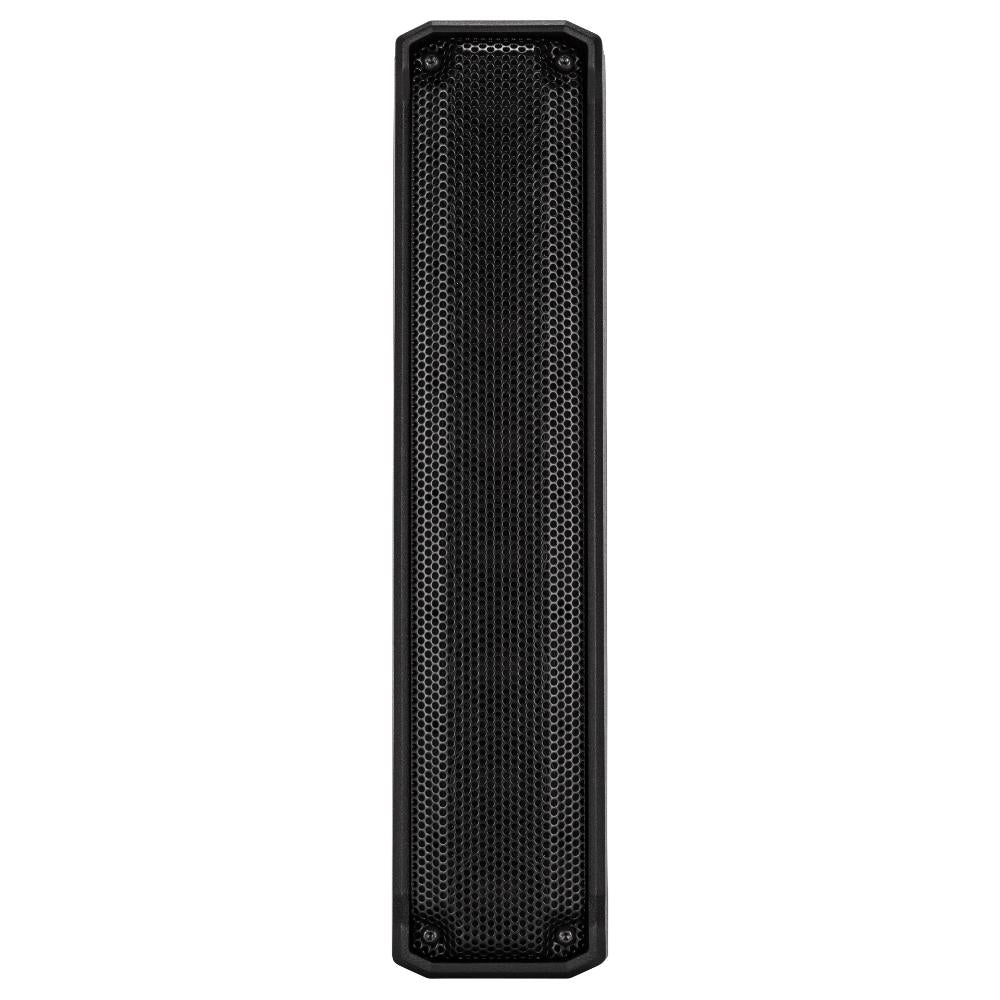

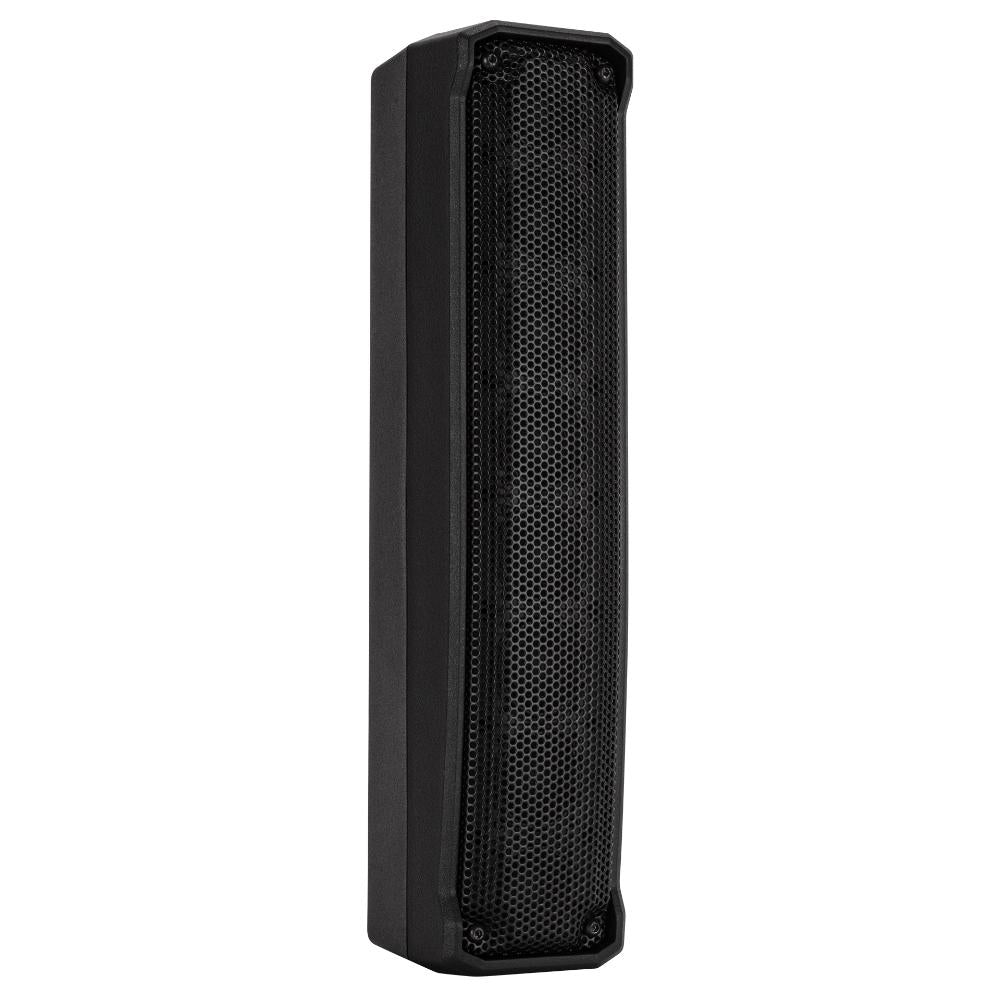

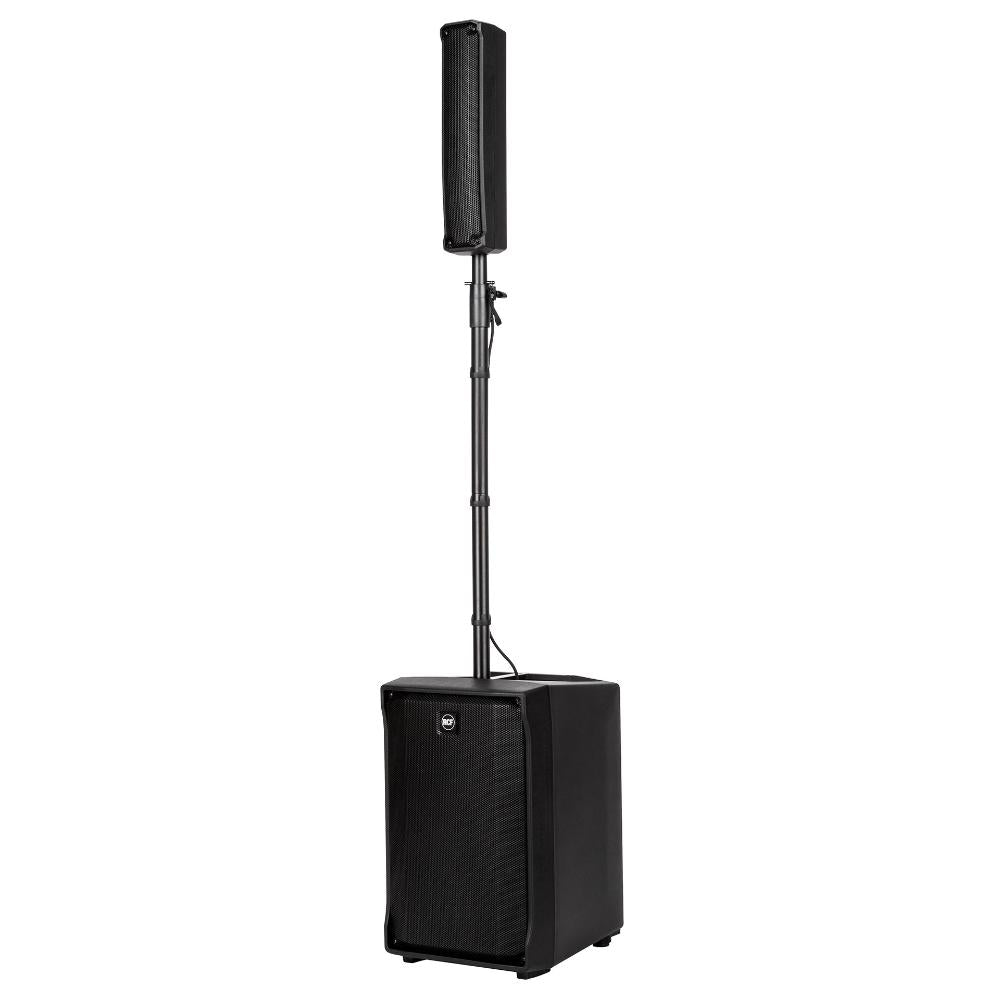

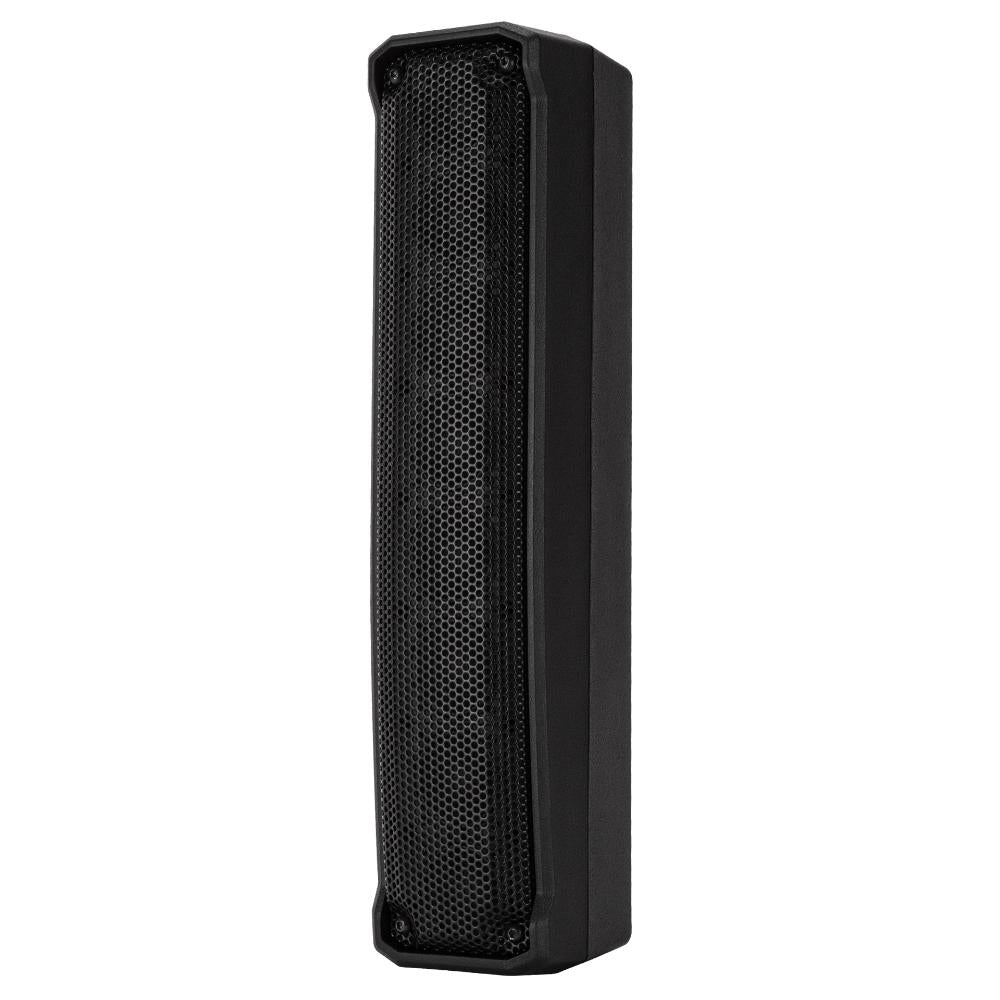

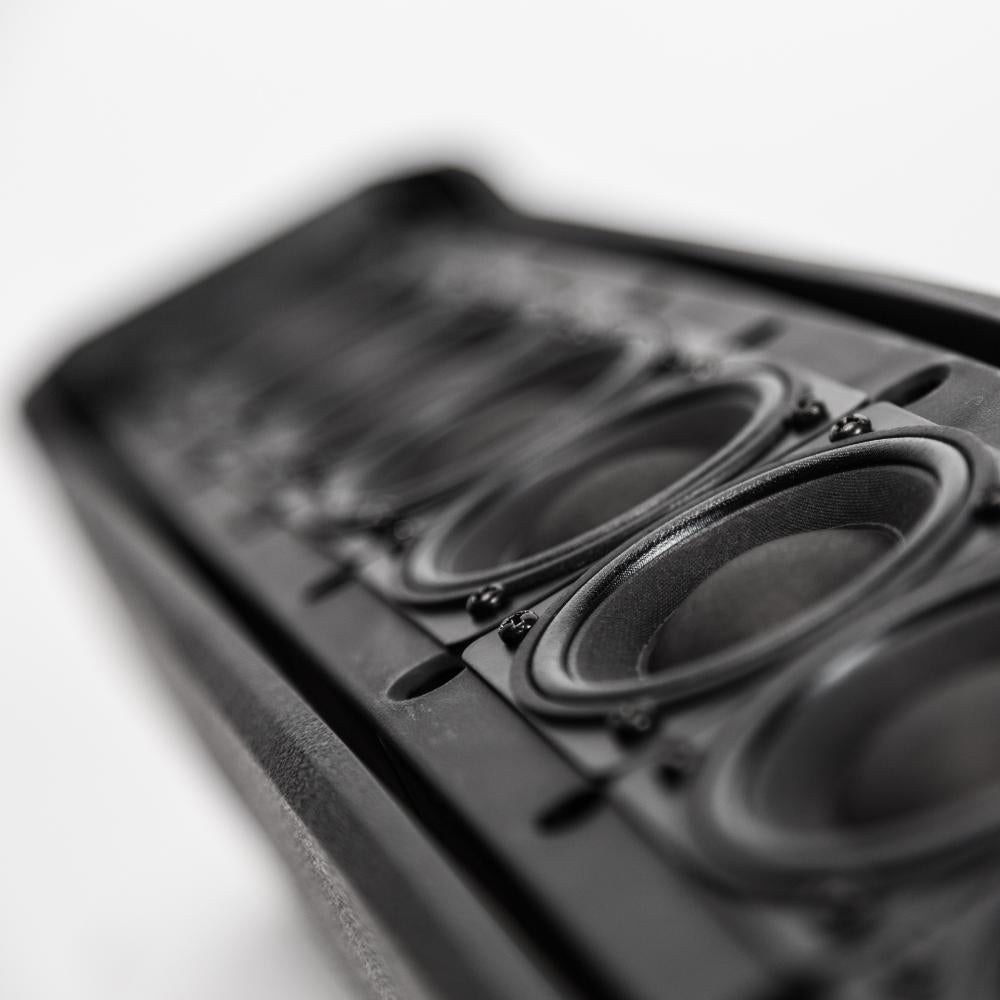

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.
Part number:
- 13000554
EVOX J8
220-240V, Black, EAN 8024530015541 - 13000555
EVOX J8
115V, Black, EAN 8024530015558 - 13000567
EVOX J8 W
220-240V, White, EAN 8024530015589 - 13000568
EVOX J8 W
115V, White, EAN 8024530015596
BRING THE PARTY WITH YOU
Powerful Class D Amplifier
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. The EVOX J amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
Superior transducers

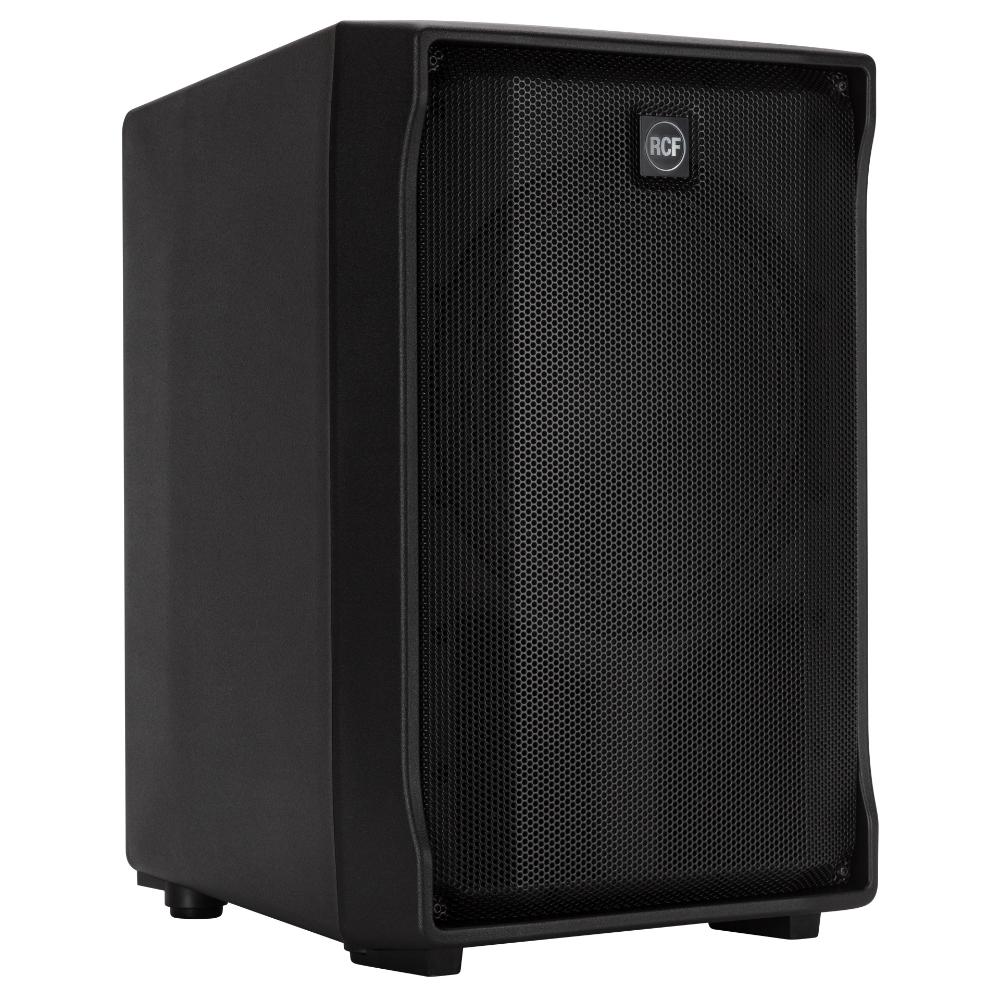

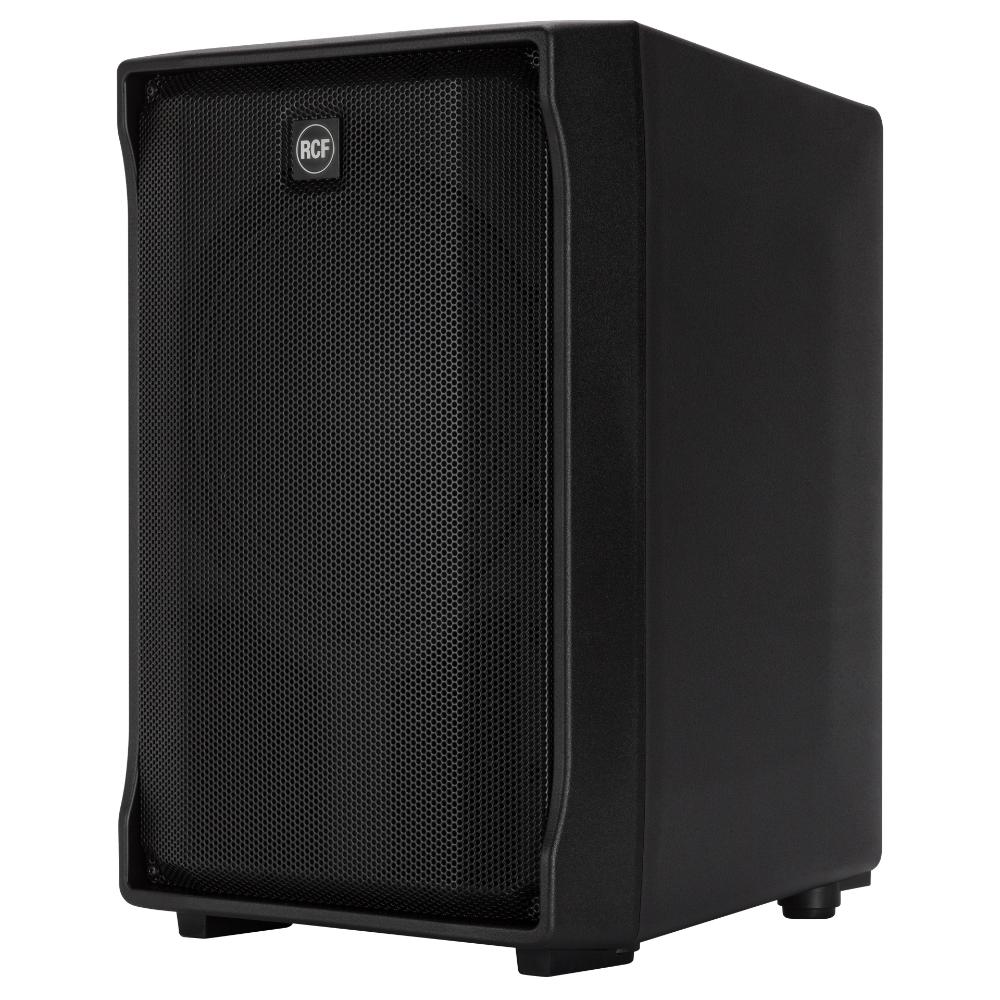

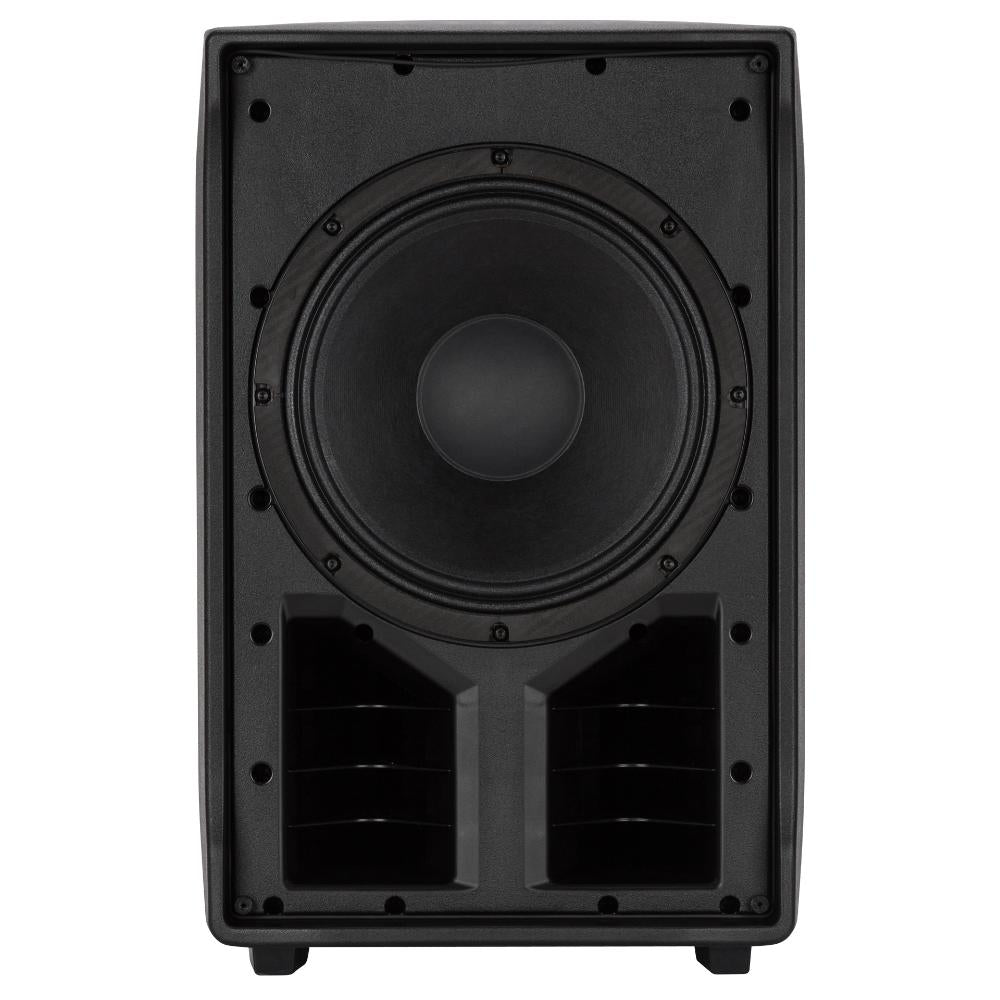

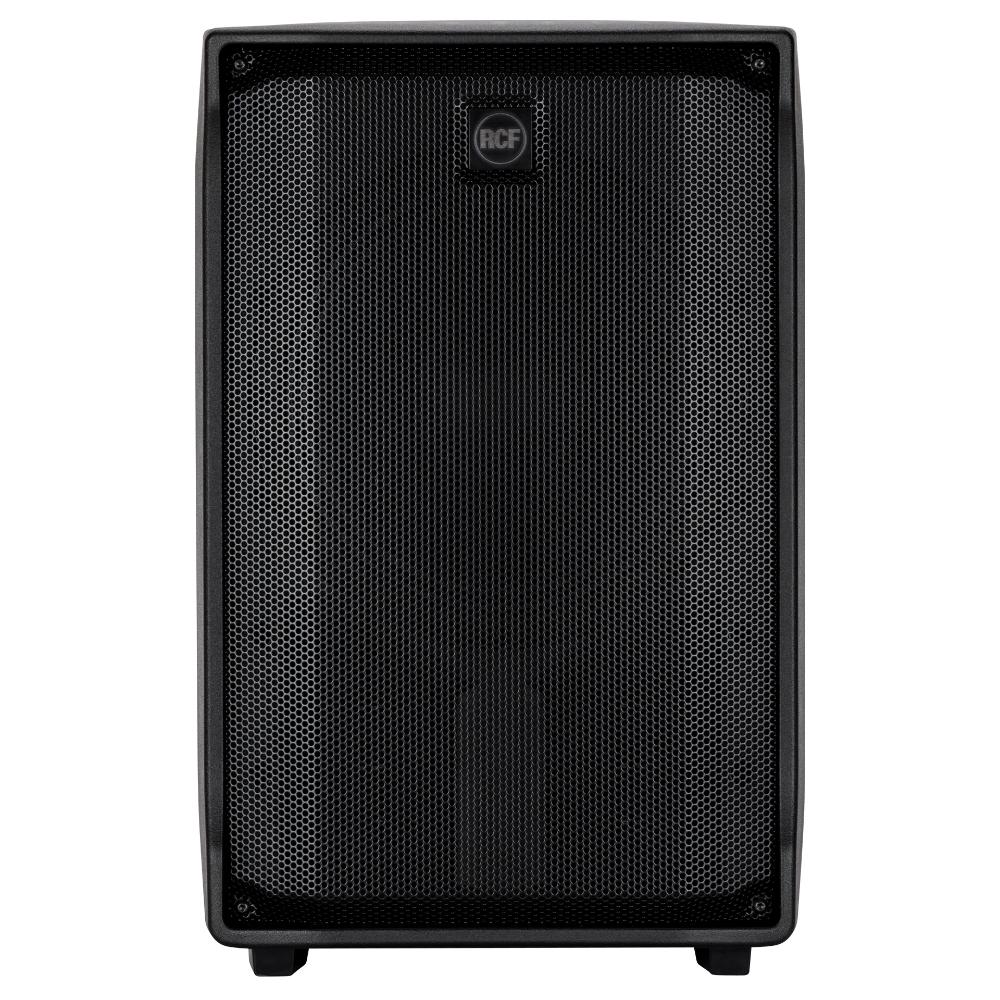

LOW FREQUENCIES - The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.
Ready to play in a few simple steps

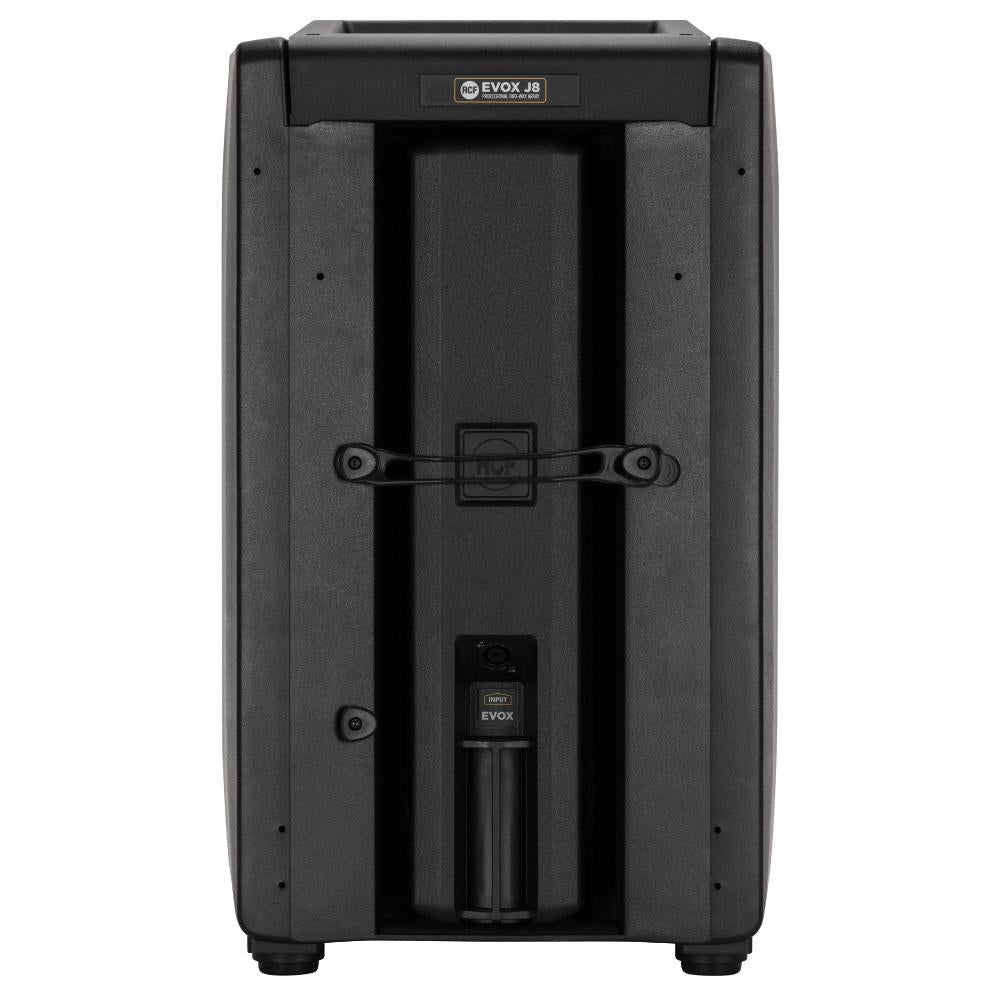

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

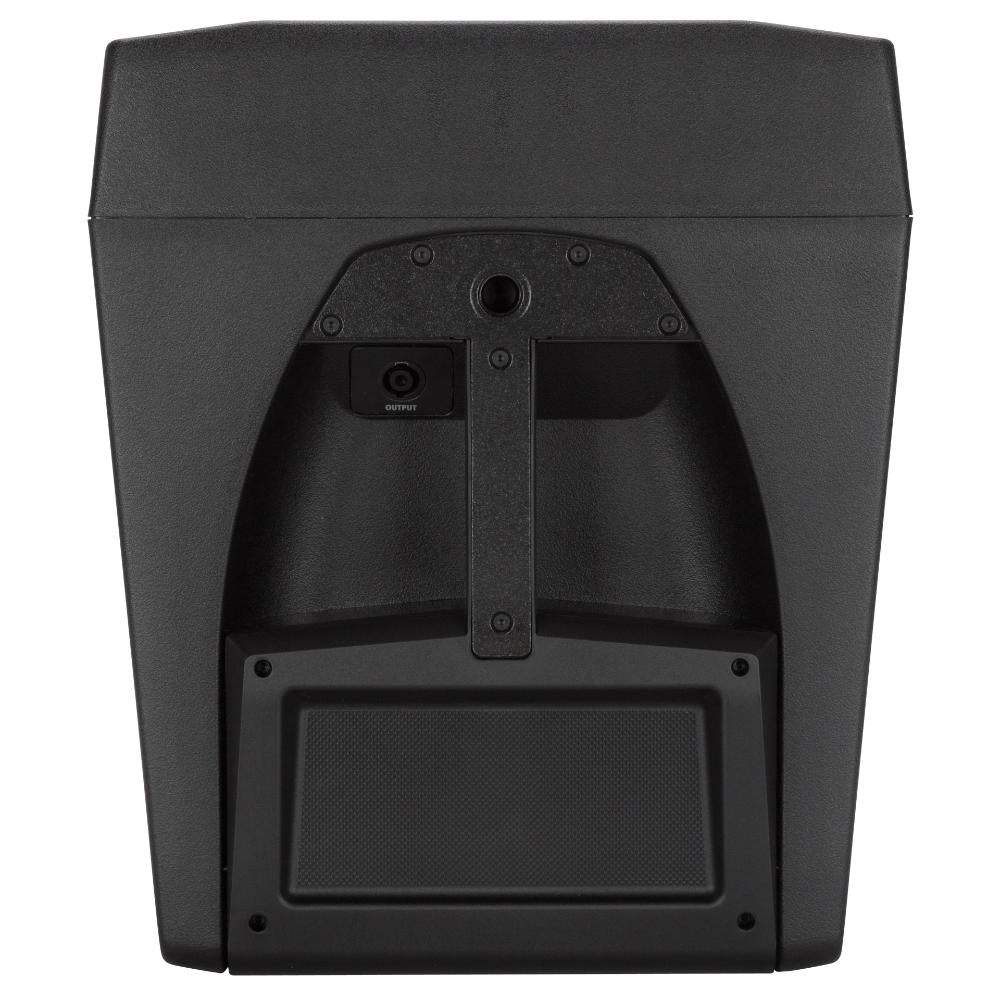

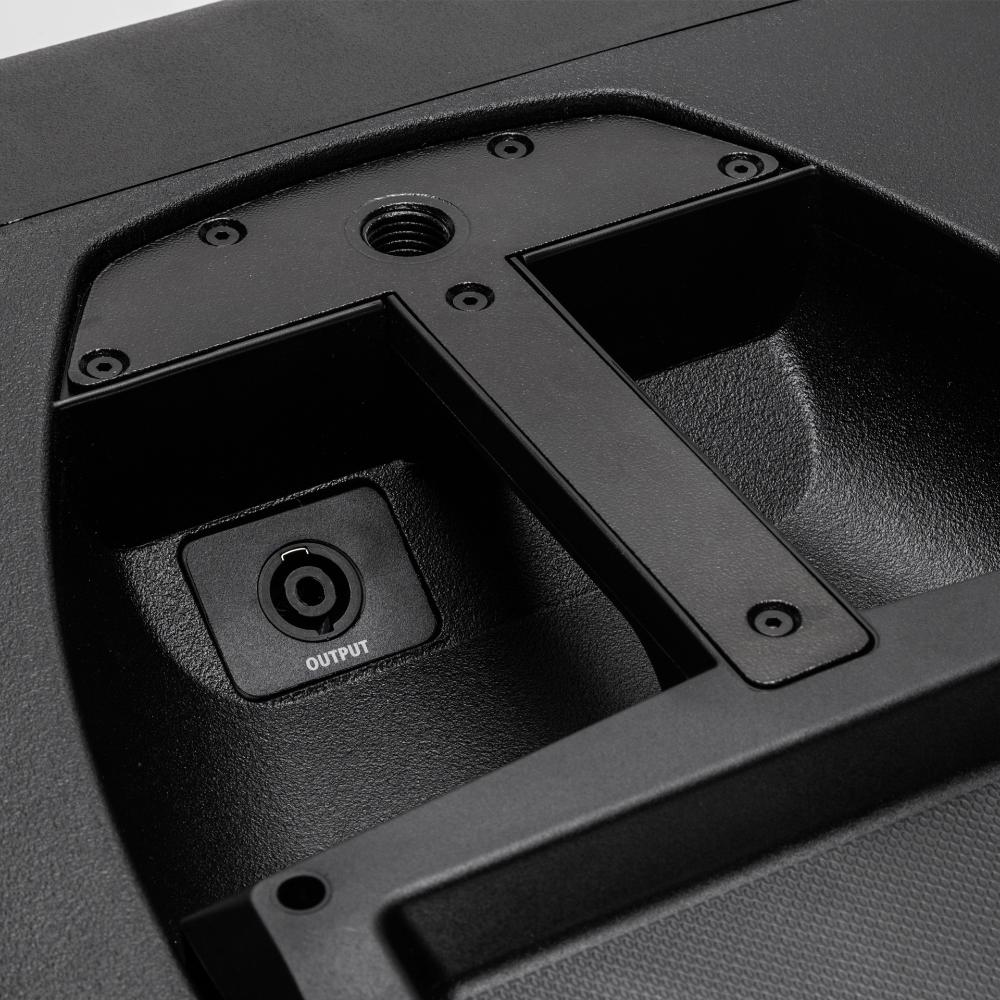

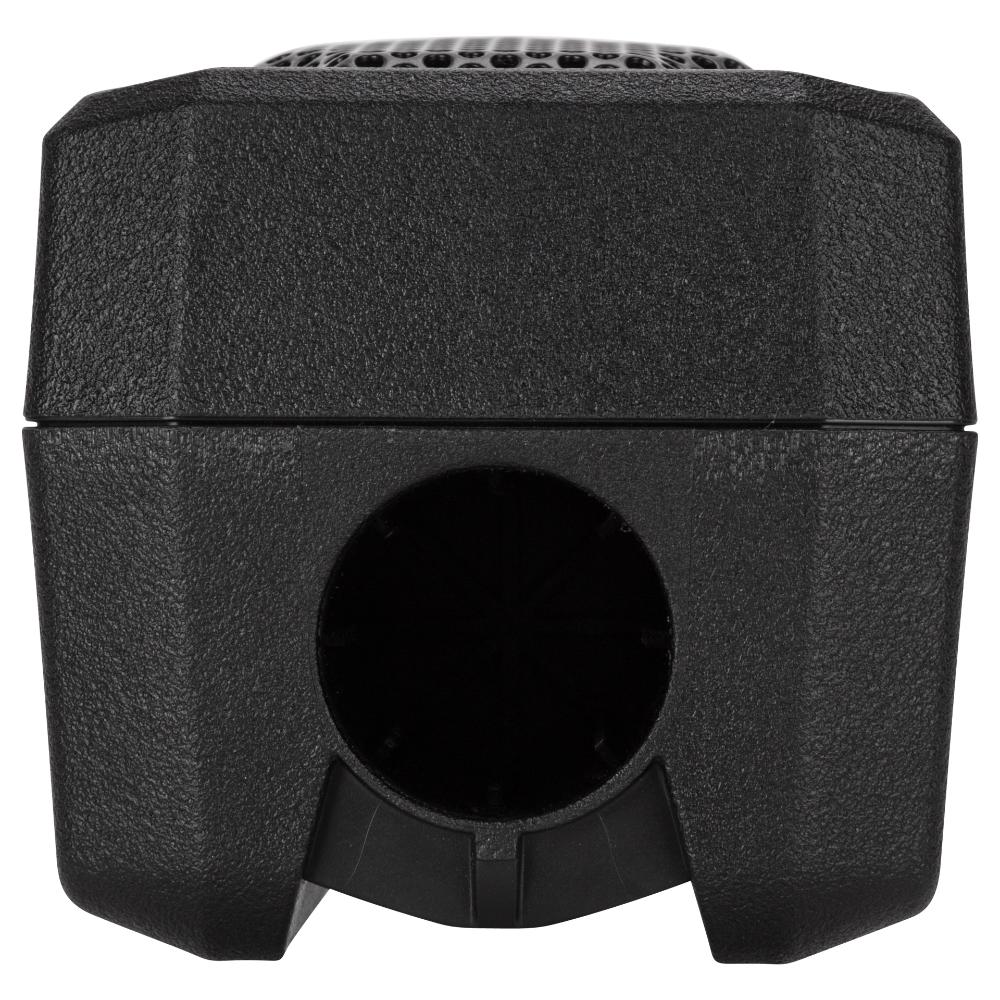

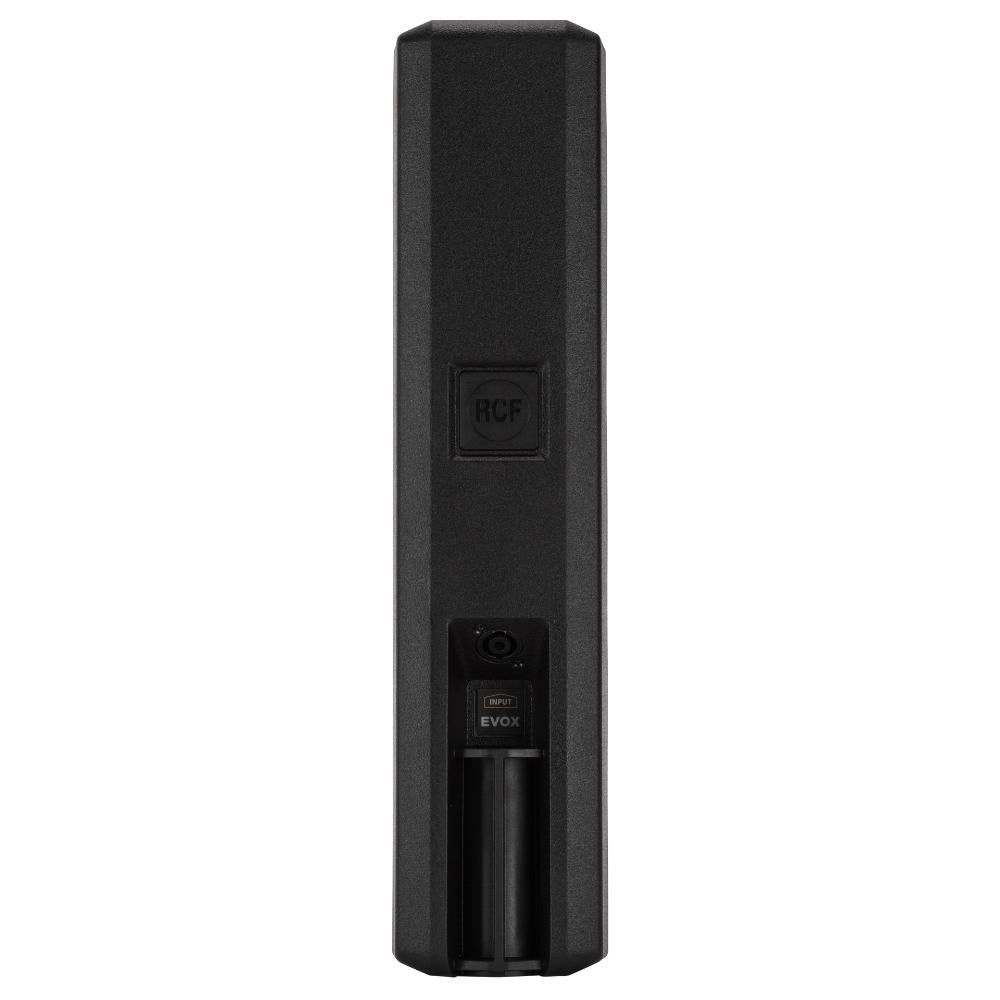

MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.
PLAY! Carrying and mounting your audio system has never been so quick.
J System configurations
From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.
SPECIFICATIONS
Acoustical specifications
- Frequency Response: 40 Hz ÷ 20000 Hz
- Max SPL @ 1m: 128 dB
- Horizontal coverage angle: 120°
- Vertical coverage angle: 30°
Transducers

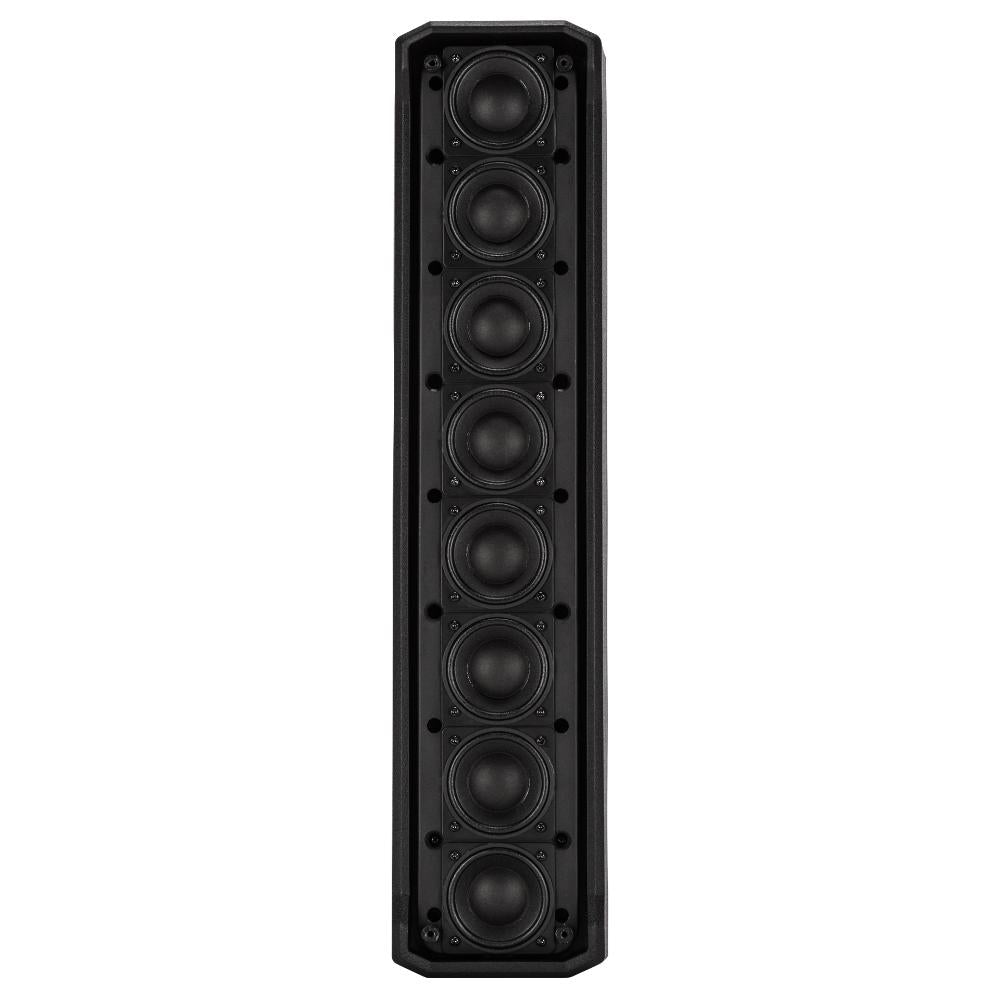

- Fullrange: 8 x 2.0'', 1.0'' v.c
- Woofer: 1 x 12'', 2.5'' v.c
Input/Output section
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
Processor section
- Crossover Frequencies: 220 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Boost, Mic/Line
Power section
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: VDE
Standard compliance
- Safety agency: CE compliant
Physical specifications:
- Cabinet/Case Material: PP Composite
- Handles: 1 Top
- Grille: Steel
- Color: Black, White
Size / Weight
- Height: 2285 mm / 89.96 inches
- Width: 400 mm / 15.75 inches
- Depth: 460 mm / 18.11 inches
- Weight: 20.2 kg / 44.53 lbs
Shipping information
- Package Height: 676 mm / 26.61 inches
- Package Width: 451 mm / 17.76 inches
- Package Depth: 581 mm / 22.87 inches
- Package Weight: 29.9 kg / 65.92 lbs
